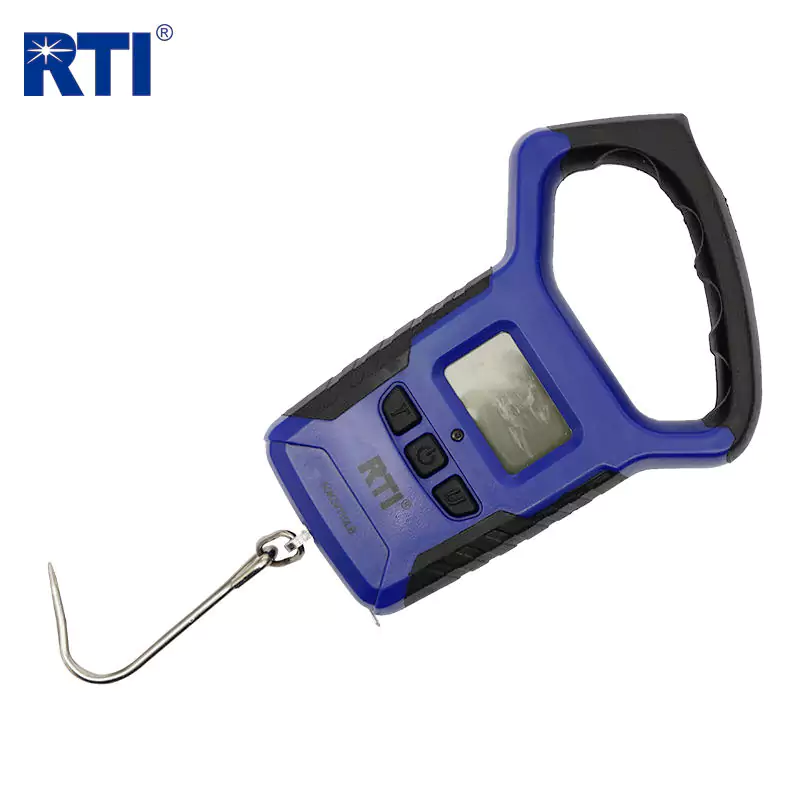

Wholesale ABS+TPR Handle 110LB Digital Fish Weighing Scale with tape measure and 2*AAA Batteries

This 110LB digital fish weighing scale is built for accurate and controlled fish weighing in real fishing conditions. With a maximum capacity of 50kg / 110lb, it meets the practical weight range required by most anglers and fishing operations.

The digital weighing system delivers stable readings that remain easy to read during use. An automatic lock function helps maintain the displayed weight when the fish is moving, reducing misreading and repeated weighing.

The structure is designed for one-hand operation. The angled handle improves control during lifting, while the hanging hook system allows secure attachment and compact storage when not in use. A built-in tape measure provides a quick way to check fish length without carrying extra measuring tools.

Why Choose This Digital Fish Weighing Scale

This digital fish weighing scale is designed to support practical weighing needs across different fishing environments. Its compact structure and balanced weight make it easy to carry and store as part of a standard fishing gear setup.

• Shore Fishing: The lightweight and portable design allows anglers to carry the scale in a tackle bag or backpack without adding bulk.
• Boat Fishing: The compact housing fits easily into boat storage compartments and supports stable weighing on deck.
• Competitive and Record-oriented Fishing: Consistent digital readings and controlled accuracy help anglers record fish weight reliably under stable conditions.
• Low-light and Night Fishing: The LCD display remains clear and readable in low-light environments, supporting use during early morning or night fishing sessions.

While originally developed for heavy freshwater fishing, the scale also supports a wide range of freshwater and saltwater species within its 110lb capacity.

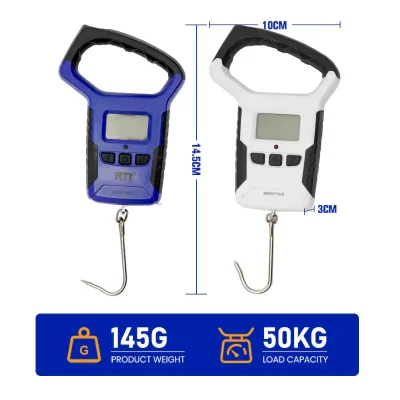

Product Specifications

110LB Digital Fish Weighing Scale Product Details

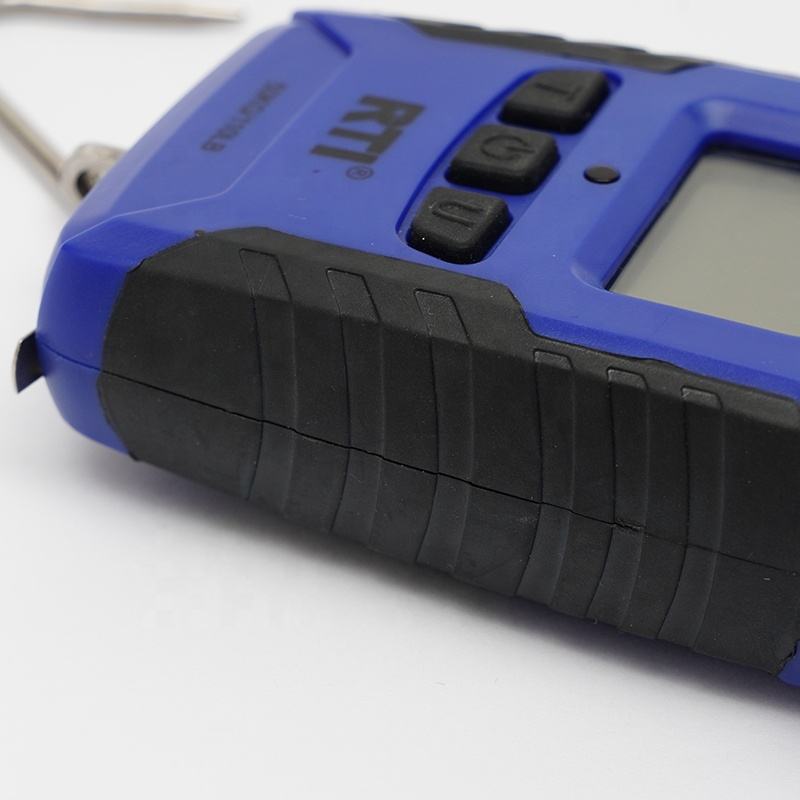

Durable ABS + TPR Housing

The body is made of ABS plastic with TPR coating, offering impact resistance and a comfortable, non-slip grip during weighing.

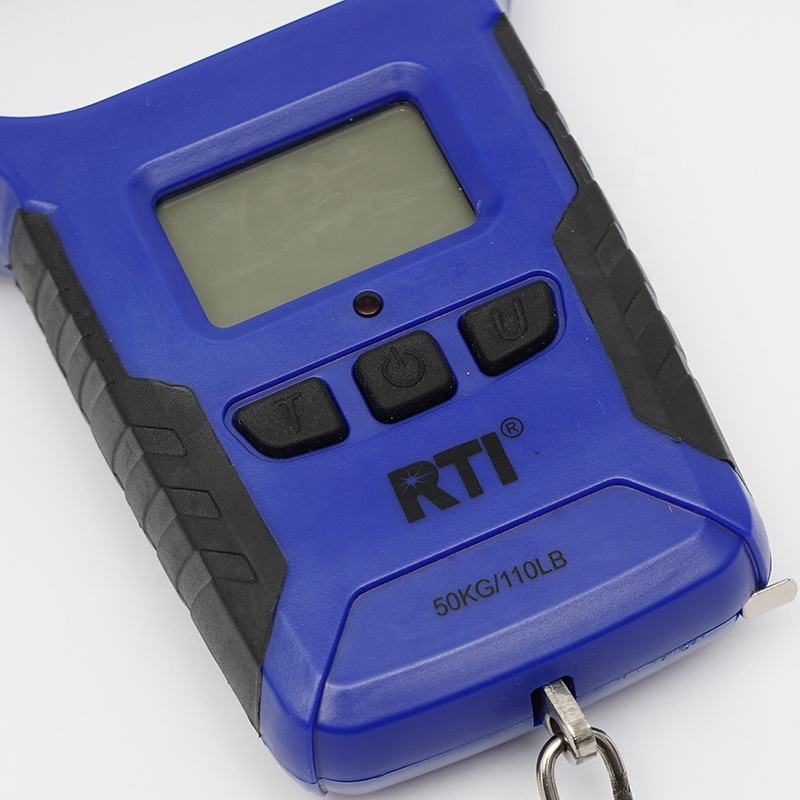

Multi-Unit LCD Display

The LCD screen displays weight in KG, LB, OZ, and Jin, suitable for different regional markets and user habits.

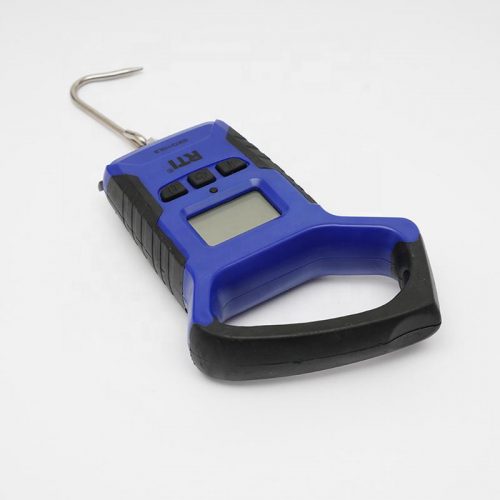

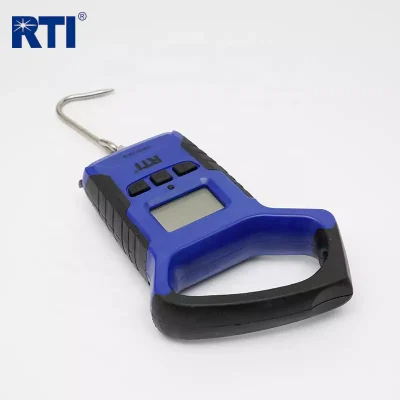

Angled Ergonomic Handle

The handle is designed at an angle to reduce wrist strain and improve lifting control when weighing heavy fish.

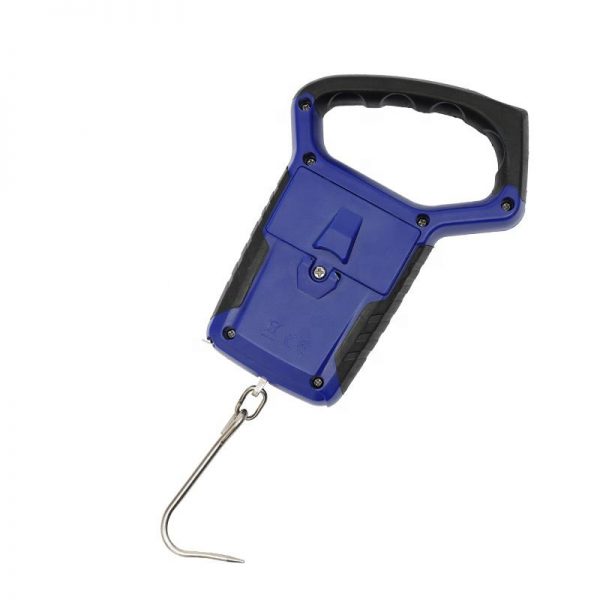

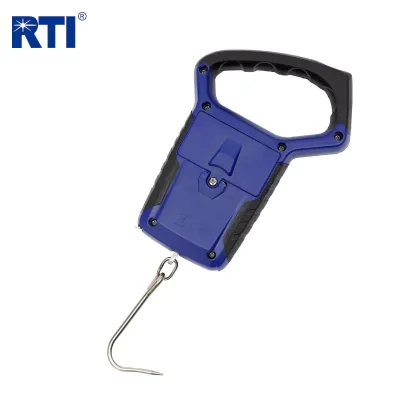

Stainless Steel Hanging Hook

A strong stainless steel hook supports stable hanging. It can be fixed onto the back shell when not in use to save space.

Built-in Tape Measure

Integrated 100cm tape measure allows quick fish length measurement without additional tools.

Battery Powered Operation

Powered by 2 × AAA batteries, easy to replace and suitable for long-term outdoor use.

Digital Fish Weighing Scale Manufacturing Process

1. Product Design & Engineering:

Engineers define the housing structure, load cell position, PCB layout, and hook interface at the design stage. These design files guide tooling, assembly, and later quality checks.

2. Tooling & Mold Development:

The tooling team machines injection molds for ABS and TPR parts. Before mass production, they test each mold for dimensional accuracy, surface finish, and assembly fit.

3. PCB Assembly & Electronic Testing:

SMT lines mount electronic components onto the PCB. After assembly, technicians power each board and complete basic functional tests before moving to the next stage.

4. Load Cell & Sensor Preparation:

Technicians install load cells and check signal output and response stability. Only sensors that meet internal standards move forward to final assembly.

5. Injection Molding & Part Inspection:

The factory molds plastic components, allows them to cool, and trims excess material. Inspectors then check parts for deformation, flash, and visible defects.

6. Metal Hook Production:

Workers form and polish stainless steel hanging hooks. Each batch undergoes strength and corrosion-resistance checks before entering assembly.

7. Assembly & Initial Calibration:

On the assembly line, workers install the PCB, load cell, display, batteries, hook, and housing. They perform an initial weight calibration on every unit.

8. Accuracy Verification & Functional QC:

Quality staff test finished scales with reference weights to confirm accuracy within tolerance. They also check the display, unit switching, lock function, and tape measure operation.

9. Water-resistance Spot Testing:

QC teams select random samples and expose them to controlled moisture conditions. These tests verify basic water-resistance performance.

10. Packaging & OEM Customization:

Packing teams prepare products in standard or custom packaging. They apply OEM logos, labels, and manuals according to customer requirements.

11. Final Inspection & Export Preparation:

Before shipment, inspectors verify quantities and overall quality. The logistics team then packs products for export and completes shipping documentation.

Compatible Fishing Tools & System Integration

For practical fishing operations, digital fish weighing scales are often used together with other landing and handling tools. This model can be integrated into a complete fishing tool setup to improve efficiency and handling safety.

Fishing Landing Nets

Pairing the scale with a landing net helps secure fish before weighing, especially for larger catches. RTI landing nets are designed for controlled lifting and reduced fish stress during handling.

Fish Grips

Using a fish grip allows anglers to hold fish securely while attaching the scale hook. This setup supports safer weighing and better control, particularly when dealing with heavier fish.

This combination approach is commonly applied in retail fishing kits, private label programs, and wholesale product assortments, where tool compatibility and system consistency are important.
