Portable 25KG/50LB Electronic Digital Hanging Luggage Fishing Weight Scale

A mini digital scale is a small, handheld weighing tool with a hook and LCD readout. It measures weight up to its capacity . Users value its portability, quick readings, and the ability to switch between kg and lb.

Typical uses include fish weighing, luggage checks, produce, and small goods. These scales run on button cell batteries and lock the measured value for easy reading.

RTI’s portable 50lb mini digital scale is a compact plastic hanging scale with an LCD screen and a durable metal hook. It supports 25KG / 50LB capacity and delivers double-range precision (5 g under 10 kg; 10 g from 10–25 kg).

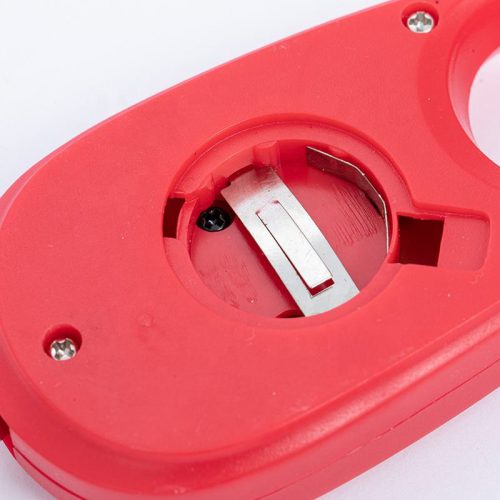

The unit uses a single CR2032 battery (not included). The scale is water-resistant for outdoor use and designed for simple one-handed operation and automatic weight lock.

Product Specifications

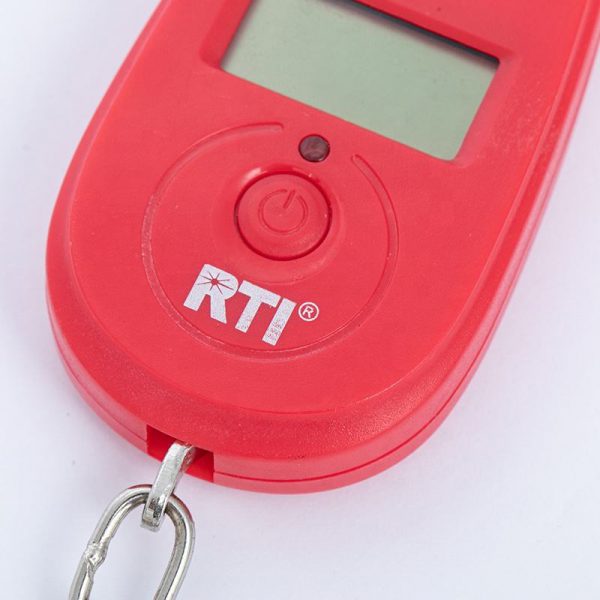

• Clear LCD Display with Unit Switch: Large LCD shows weight in KG or LB. Users can switch units quickly to serve different markets and customer preferences.
• Accurate Dual-Range Precision: High resolution: 0–10 kg at 5 g steps; 10–25 kg at 10 g steps. This balance gives reliable readings for both light and mid-range weights.
• Compact & Portable Design: Small footprint and light weight make the scale ideal for travel, fishing trips, and retail checks. Fits easily in tackle boxes or luggage.
• Auto-Hold & Easy Readings: The scale locks the final reading when you remove the load. That makes one-person weighing and photo documentation simple.
• Water-Resistant Construction: Sealed plastic body and rugged hook help the scale resist splashes during field use — important for fishing and outdoor environments.

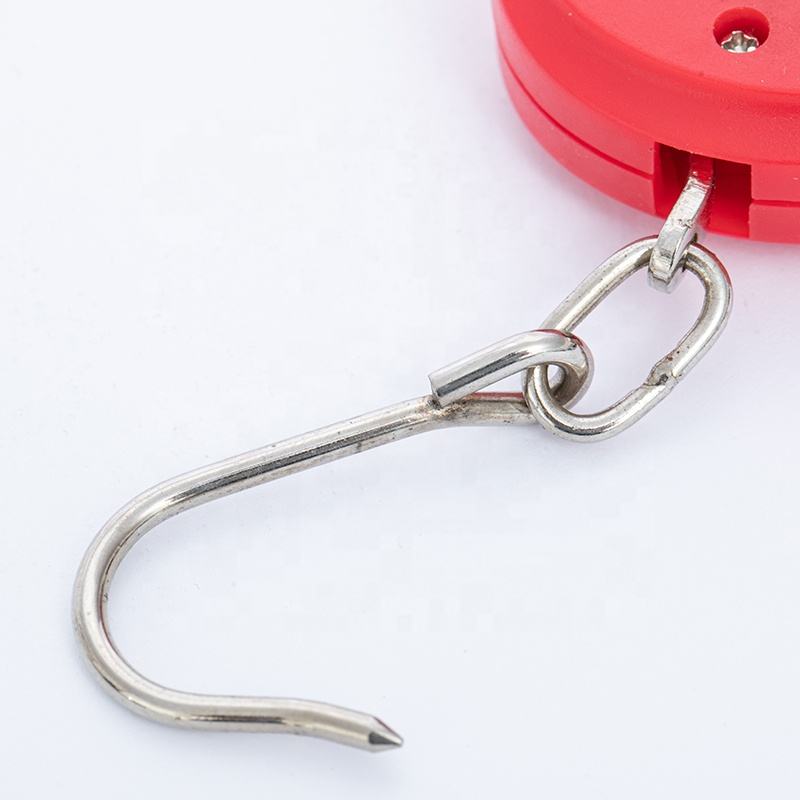

• Durable Hook & Fasteners: A reinforced metal hook provides secure load handling for fish and luggage. Designed for repeated commercial use.

Manufacturing Process of Mini Digital Scale

1. Design & Specification: Finalize model geometry (body size, hook type), target accuracy, and display layout.
2. Material Sourcing: Source ABS/PC plastic for housing, stainless or zinc-plated metal for the hook, LCD module, and CR2032 battery holders from approved suppliers.
3. Injection Molding & Housing Production: Produce housings by injection molding. Mold tolerances ensure button placement and LCD window alignment.
4. PCB Assembly & Component Mounting: Assemble the weighing PCB, load cell sensor, and LCD module. Perform SMT/through-hole soldering and test for firmware and power management.
5. Calibration & Accuracy Tuning: Calibrate each unit on a test bench using traceable weights. Set firmware offsets and verify dual-range precision (5 g / 10 g bands).
6. Assembly & Functional Testing: Install housing, hook, and battery holder. Run power-up test, unit switch, auto-hold, and water-resistance checks. Reject or rework units failing tolerance.

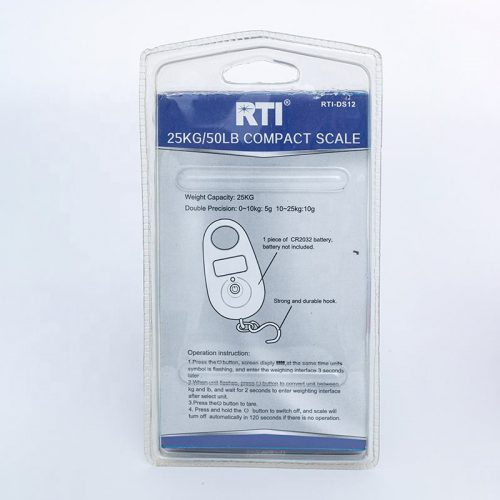

7. QC & Packaging: Final inspection for cosmetics and function. Pack units in blister card or custom packaging as ordered. Label packages for OEM buyers and prepare bulk cartons.

Portable Mini Digital Scale Product Application

Widely used in family weighing, luggage weighing, vegetable weighingfish weighing, animal and other possible weighing.

• Fishing & Angling: weigh catches quickly on boat or shore. Useful for guides and tackle shops offering branded scales.
• Luggage & Travel Retail: allow travelers to check bag weight before flights; suitable for travel accessory suppliers.
• Produce & Market Use: weigh vegetables and small goods at farmers’ markets and grocery stalls.
• Household & Light Industry: portable solution for small shipment checks, parcel shops, and home tasks.
