Wholesale Boat Marine 304 316 Stainless Steel Adjustable Rod Holder Rail Mount Clamp-on Fishing Rod Holder
5 – 49 pieces: $18
50 – 999 pieces: $13.90
1000 – 2999 pieces: $12.90
>= 3000 pieces: $11.90
|
Material
|
Stainless steel+PP
|
|
Color
|
Black, White
|
|
Size
|

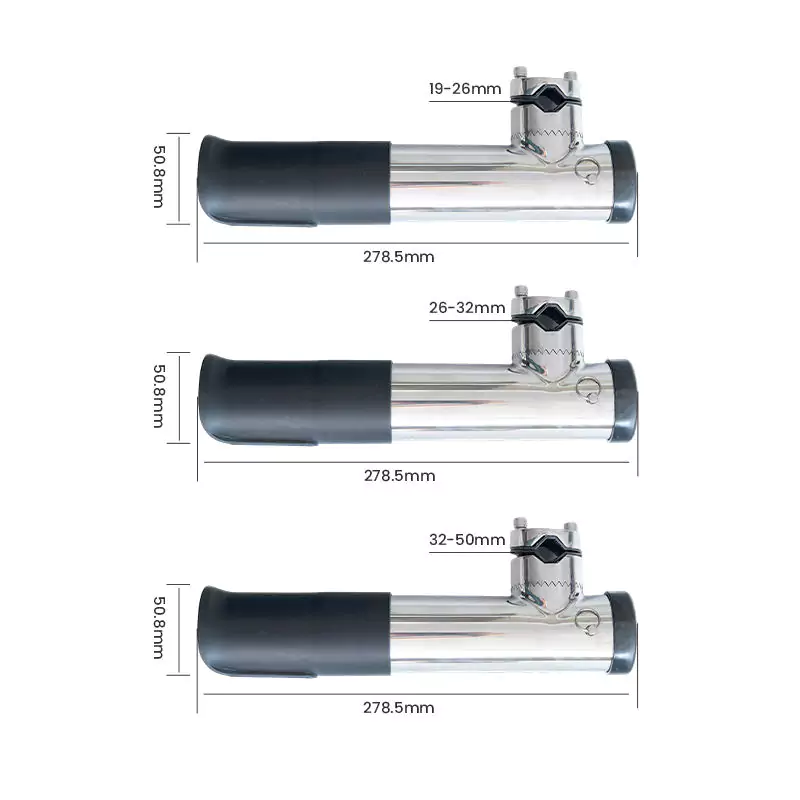

Length：278.5mm. Diameter：50.8mm
|
|
Weight
|
0.654kg
|

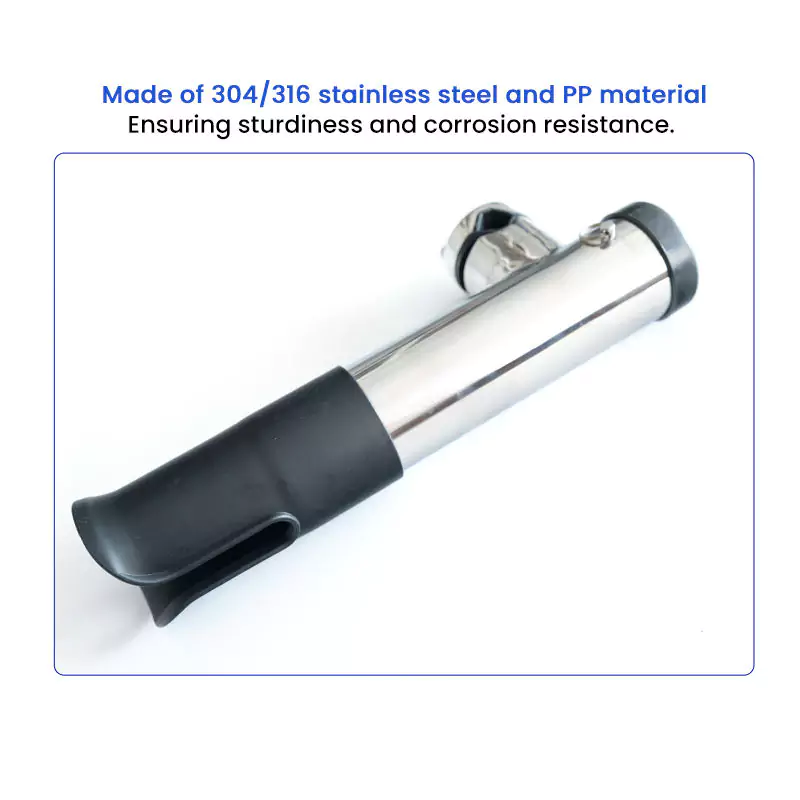

- Made of 304/316 stainless steel and PP material, ensuring sturdiness and corrosion resistance.

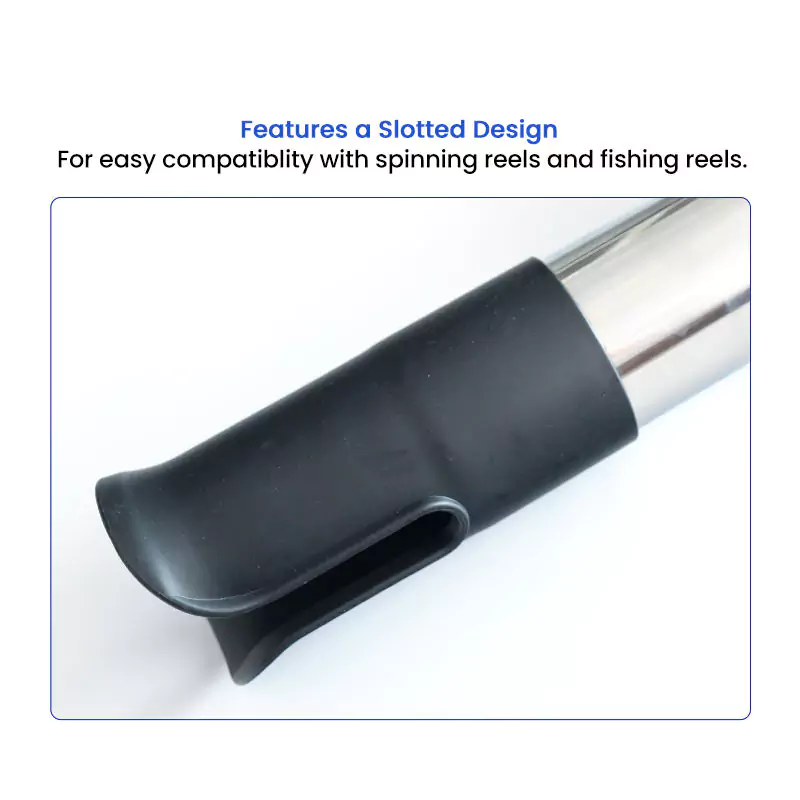

- Features a slotted design for easy compatiblity with spinning reels and fishing reels.
- Adjustable for rails 19-26mm.

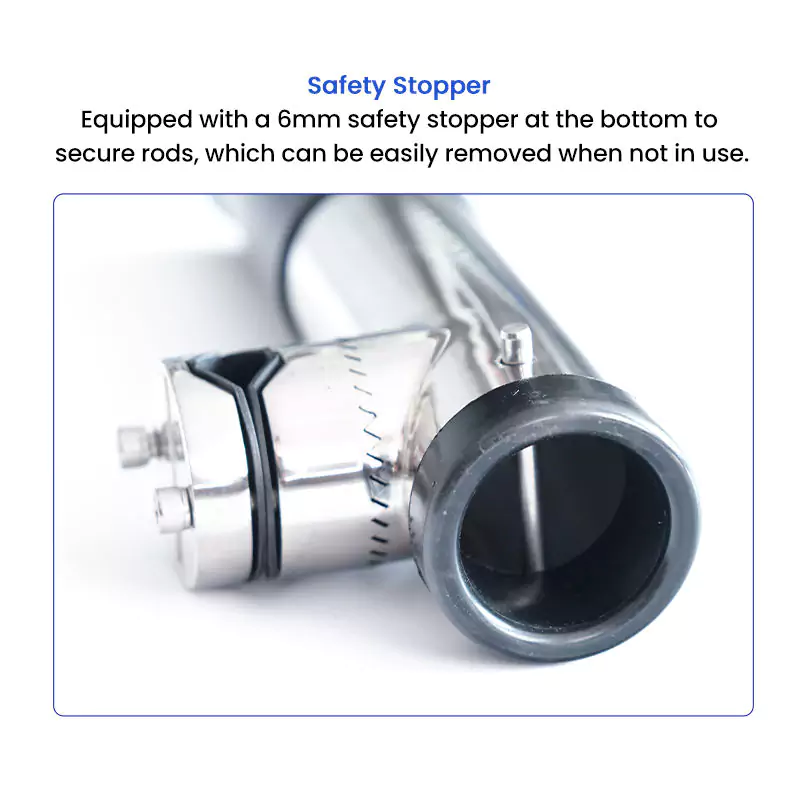

- Equipped with a 6mm safety stopper at the bottom to secure rods, which can be easily removed when not in use.
Shipping
Contact supplier to negotiate shipping details Enjoy On-time Dispatch Guarantee.
Payments
Enjoy encrypted and secure payments.
Returns & Refunds
Eligible for refunds within 30 days of receiving products.
An adjustable rod holder is a clamp-on mount that secures a fishing rod to a boat rail. It allows anglers to change the rod angle and hold rods hands-free. Most models accept spinning and baitcasting reels using a slotted tube or liner. Adjustable holders are common on small boats, yachts, and fishing platforms.

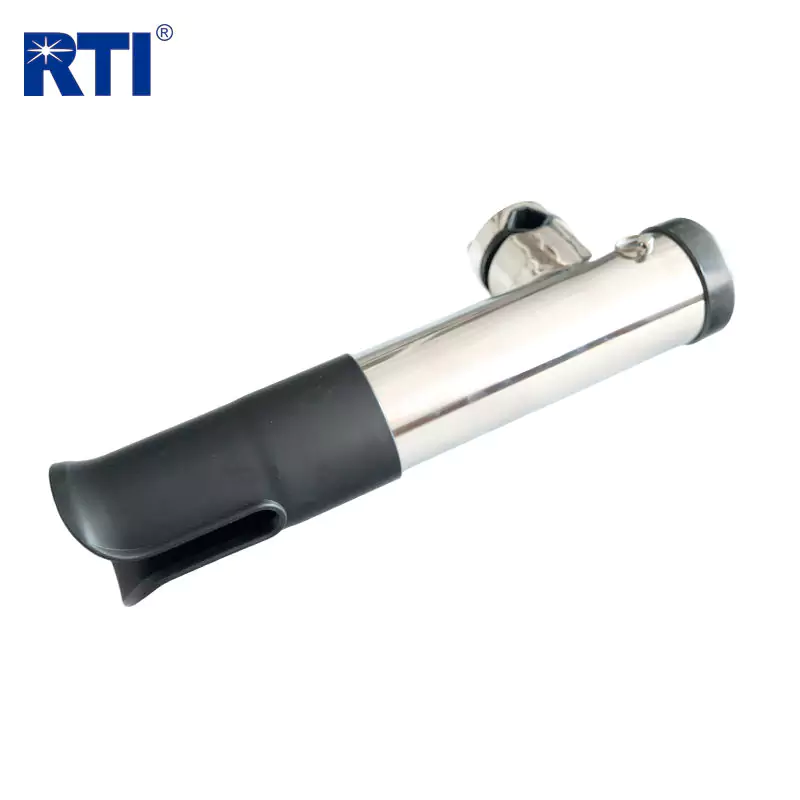

RTI’s Adjustable Rod Holder is built from 304 or optional 316 stainless steel with PP components. It clamps to rails 19–26mm and features a slotted inner tube for spinning reels. A removable 6mm safety stopper at the base secures rods during rough conditions. The unit is portable, easy to install, and available for OEM and wholesale orders with custom packaging and branding.
Product Specifications
|
Product Name
|
304/316 Stainless Steel Black Adjustable Rod Holder
|
| Model Number |
RTI-RH88
|
|
Size
|
Length：278.5mm.
Diameter：50.8mm
|
|
Color
|
Black，White
|
|
Material
|
Stainless steel+PP
|
|
Weight
|
0.654kg
|
|
Single package size
|
35X10X10 cm
|
|
Single gross weight
|
1.500 kg
|
- Made of 304/316 stainless steel and PP material, ensuring sturdiness and corrosion resistance.
- Features a slotted design for easy compatiblity with spinning reels and fishing reels.
- Adjustable for rails 19-26mm.
- Equipped with a 6mm safety stopper at the bottom to secure rods, which can be easily removed when not in use.
Advantages of Stainless Steel Fishing Adjustable Rod Holder
- Rail Compatibility: Fits 19–26mm:
Clamp design adapts to a common range of rail diameters. Quick clamp adjustment makes installation tool-free. - 304 / 316 Stainless Steel Construction:
Choice of 304 or 316 stainless ensures strength and corrosion resistance for freshwater and saltwater use. - Slotted Tube Design for Reel Fit:
The slotted tube accepts spinning and baitcasting reels, reducing line interference and preventing rod wear. - Removable 6mm Safety Stopper:
Bottom stopper secures the rod during movement. Remove it easily when not needed for quick rod removal. - PP Liner & Protective Finish:
Polypropylene liner cushions rod blanks and prevents scratching. The finish helps drainage and lowers corrosion points.
Adjustable Rod Holder Manufacturing Process
- Design & Tooling:
Engineers create 3D CAD drawings for the tube, clamp, liner, and stopper. Molds for PP parts and jigs for assembly are produced after verifying rail fit between 19–26mm. - Material Preparation:
304 or 316 stainless steel tubes are cut with automatic tube cutters and deburred by belt grinders. Clamp blanks are stamped, and PP resin is dried before injection molding. - Machining:
CNC machines process clamp joints and bolt holes. Tube slots are laser-cut for precision, and all metal parts are ultrasonically cleaned to remove oil and dust. - Surface Treatment:
Stainless parts are polished in a tumbler, then passivated in acid solution to improve corrosion resistance. Each piece is air-dried and checked for uniform finish. - Injection Molding:
PP liners and stoppers are molded using injection machines. Mold temperature and pressure are controlled to ensure consistent shape and thickness. - Assembly:
Workers fit liners and stoppers into tubes, then attach clamps and bolts using pneumatic tools. Each holder is tested on a sample rail to check adjustment and grip. - Quality Inspection:
Dimensions are measured with calipers, and torque is tested with digital meters. Salt spray and functional rotation tests verify corrosion resistance and performance. - Packaging:
Approved holders are wrapped with protective film and packed in individual boxes or OEM cartons. Each carton includes a QC label and is palletized for shipment.
Q1: What is the minimum order quantity (MOQ) for OEM orders?
A: MOQ depends on customization level. For simple branding (laser logo + standard box) MOQ starts at 500 pcs. Complex molds or special finishes may increase MOQ.
Q2: Can you supply samples before bulk production?
A: Yes. We provide production samples for qualification. Sample fee applies and is refundable after order confirmation in many cases.

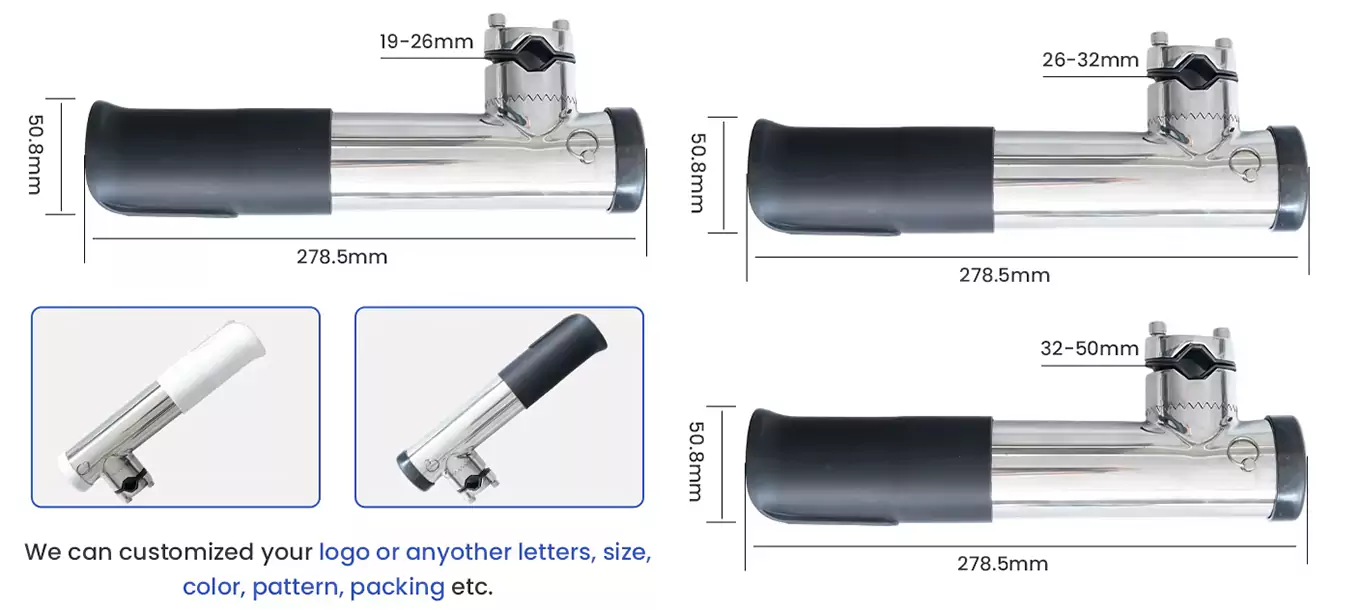

Q3: Do you offer custom colors and packaging?
A: Yes. We can customize plastic liner color, box artwork, and labeling. Provide artwork files and packaging specs; we will quote lead time and tooling costs if needed.
Q4: How do you test corrosion resistance?
A: We conduct batch salt spray tests and visual inspections after passivation. We also perform functional clamp tests on representative rail sizes.
Q5: Can the holder be mounted vertically and horizontally?
A: Yes. The clamp allows vertical or horizontal mounting on suitable rails. Angle adjustment depends on clamp orientation and installed hardware.
Q6: What are typical lead times for bulk orders?
A: Standard production lead time is 50–60 days after design approval and deposit. Custom tooling adds additional time; exact lead time is provided on quotation.
Q7: Can you include spare parts in bulk orders?
A: Yes. We can include spare safety stoppers, mounting screws, or extra liners in the shipment. State required quantities when requesting a quote.
